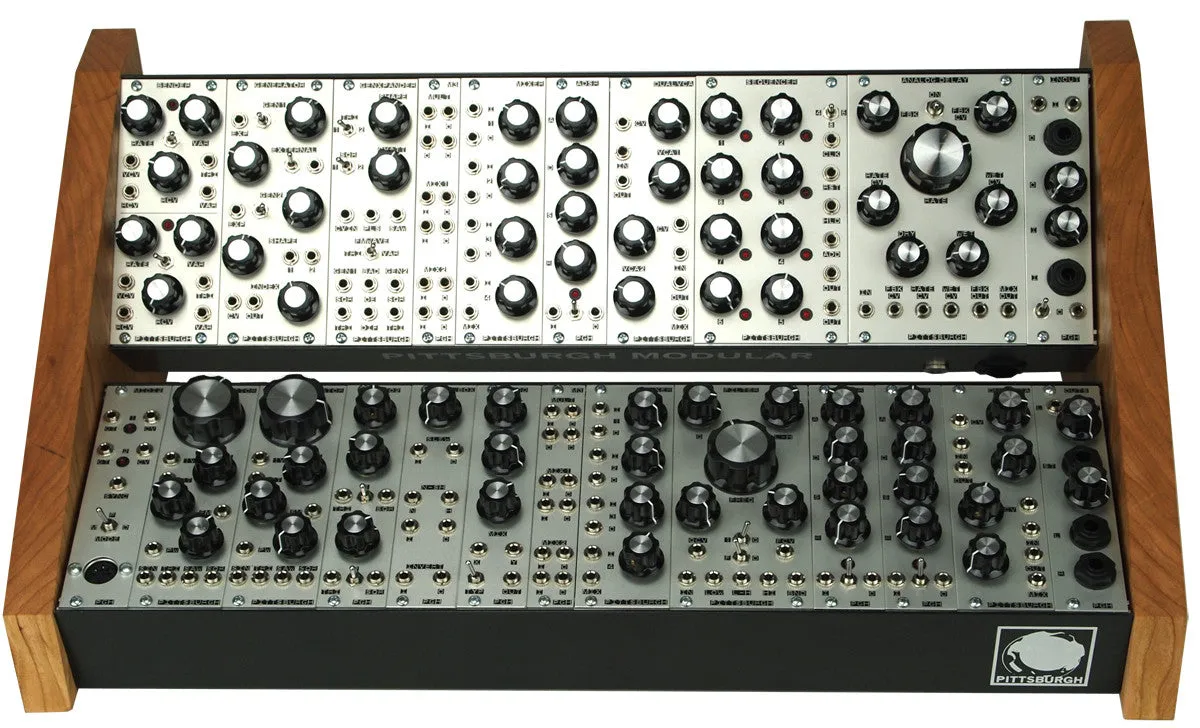

The Foundation is a "complete voice". It contains all the modules needed to produce a wide variety of complex sounds such as monster analog bass, cutting leads, evolving pads, and short percussive hits. All of which can be controlled directly using the Foundations' 45 knobs and switches then played with any standard Midi controller. The Midi module included in the Foundation allows for monophonic / duophonic / and dual monophonic patching for maximum flexability.

An unpatched Foundation offers a clean slate for sonic exploration and sound design. The open format of a modular synthesizer allows for greater control and a deeper understanding of synthesis. The Foundation is comprised of a heavy duty eurorack case and individual eurorack modules designed to work together and as part of a larger modular system. Modules within the Foundation can be rearranged easily or replaced as a system grows or individual needs change.

CELL[90] Foundation Modules:

• 2x Oscillator
  Multiple Analog Waveforms
  Wide Frequency Range


• Dual LFO
  2 Independent Low Frequency Oscillators


• Toolbox
  Slew, Noise, Sample & Hold, Inverter


• Ring Modulator
  3 Modes


• 4 Channel Mixer / Attenuator
  Multifunction Module
  4 Channel Mixer
  4 Independent Attenuators


• Multi Mode Filter
  Lowpass, Highpass, Bandpass, Variable Outputs
  Voltage Controlled Frequency and Q
  Filter and Oscillator Modes


• 2x Envelope Generator
  4 Stage (Attack, Decay, Sustain, Release)
  Fast and Slow Modes


• Dual VCA
  Attenuated CV Input
  Individual and Mix Outputs


• Headphone and ﾼ" Line Outs
  Stereo or Dual Mono Outputs


• Midi to CV Converter
  Monophonic/Duophonic/Dual Monophonic Modes
  Dual CV Out
  Dual Gate Out
  Clock Sync Out


• Signal Splitter and Dual Unity Gain Mixer/Splitter
  Audio and Control Voltage Signal Router

CELL [90] Foundation Specifications:

• Cell [90] Case
• Single Row Hardwood Side Panels
• 450mA Universal Linear Power Supply
• 15 Patch Cables
• Cell [90] Foundation User Manual
