DETAILS

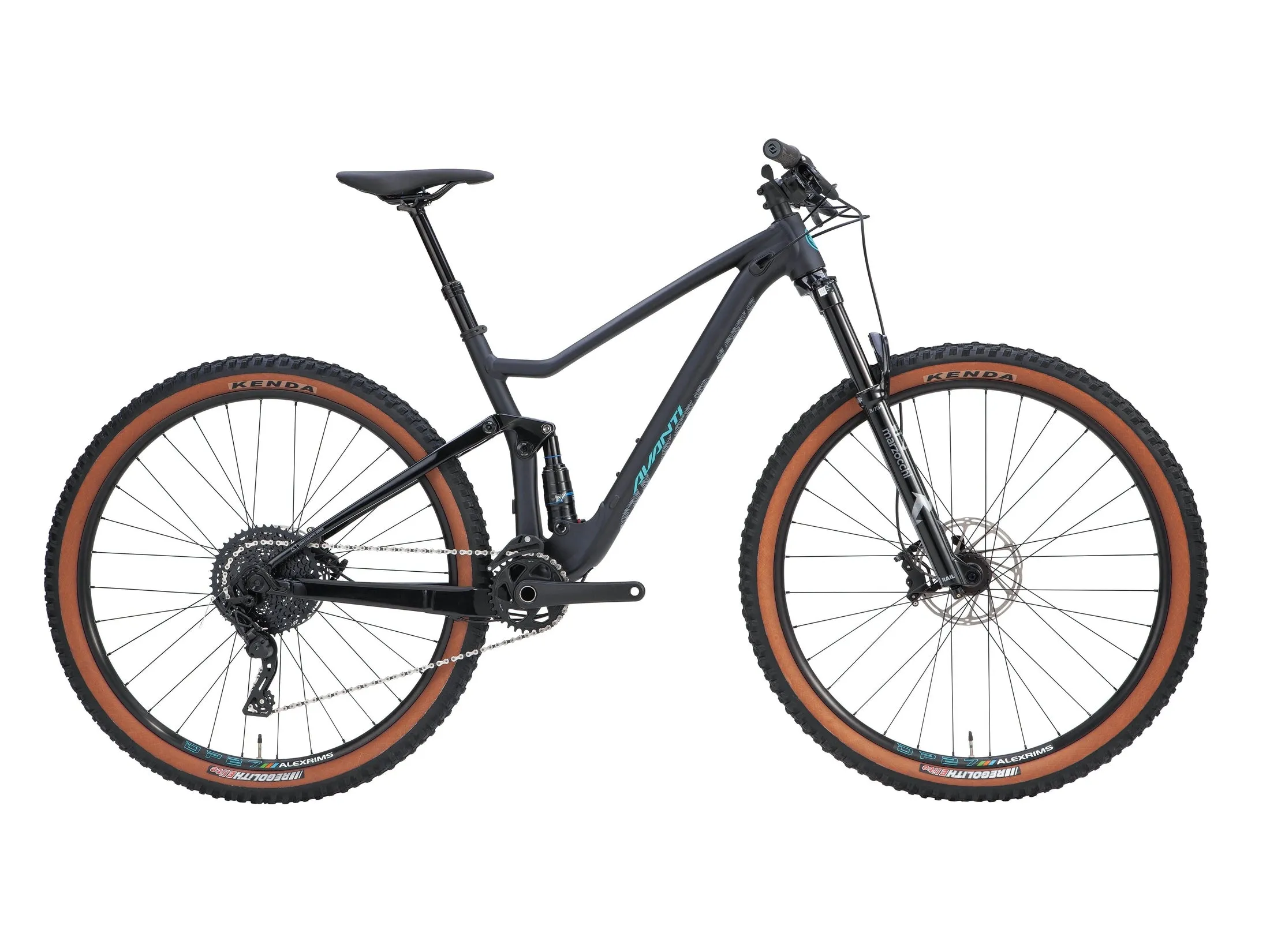

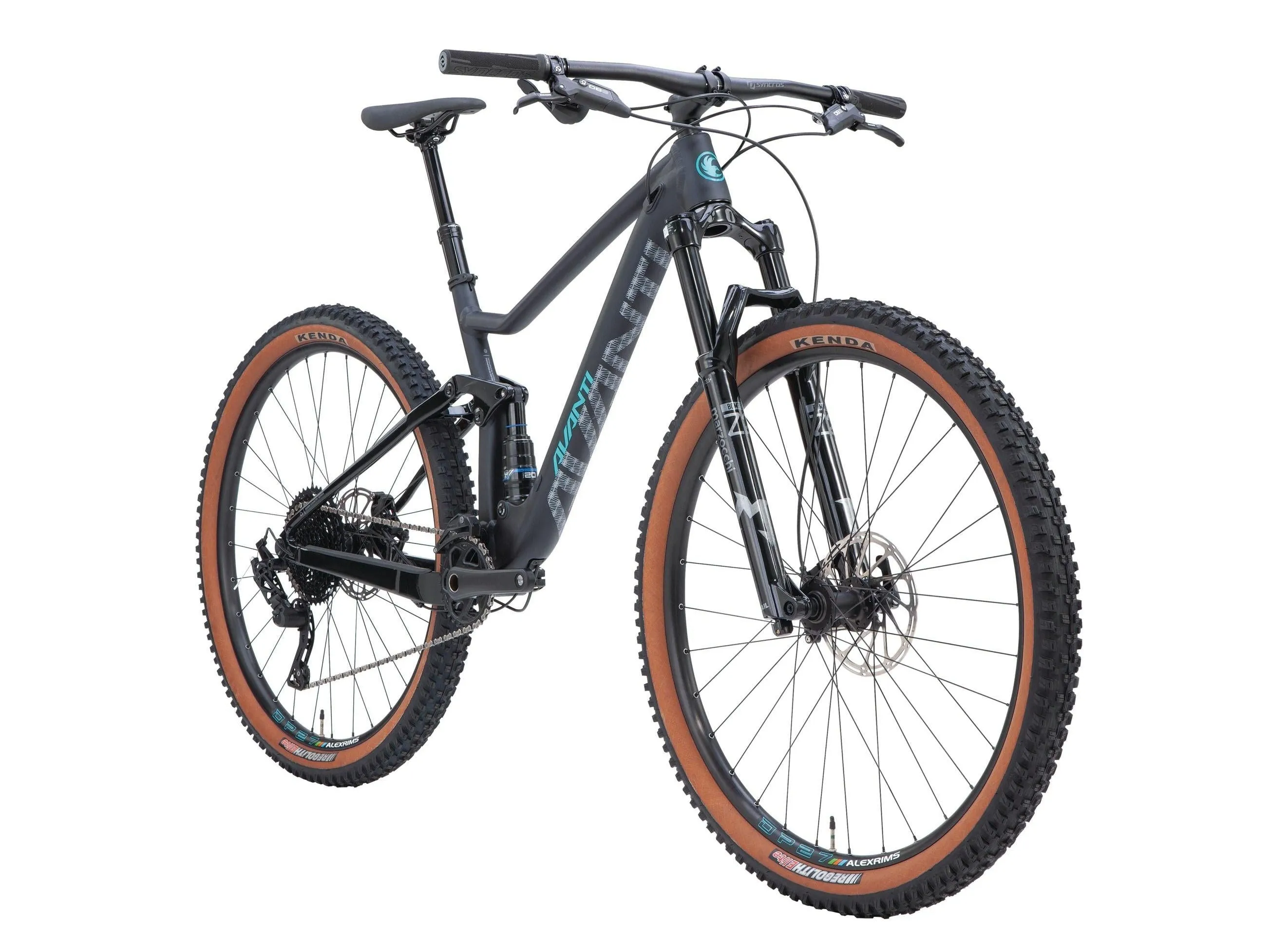

The brand new Hammer S offers a superlight, 120mm travel, butted 6061 SL alloy frame, engineered in Switzerland, with a progressive 'downcountry' geometry, featuring longer reach and a slacker head angle for a super-stable ride. With Marzocchi's tough and light 130mm air-sprung Z2 Bomber forks, a custom-tuned X-Fusion rear air shock and a long-travel dropper, the Hammer will boost your confidence in even the toughest of trails.
Wide rims and grippy 2.4" wide tubeless ready rubber will hook up on just about anything and Microshift's stunning 11sp groupset will remain flawless for years of hard riding. Now go after it!
SPECIFICATIONS
HANDLEBAR
Syncros Alloy 31.8mm, with low rise, 9 deg sweep
HEADSET

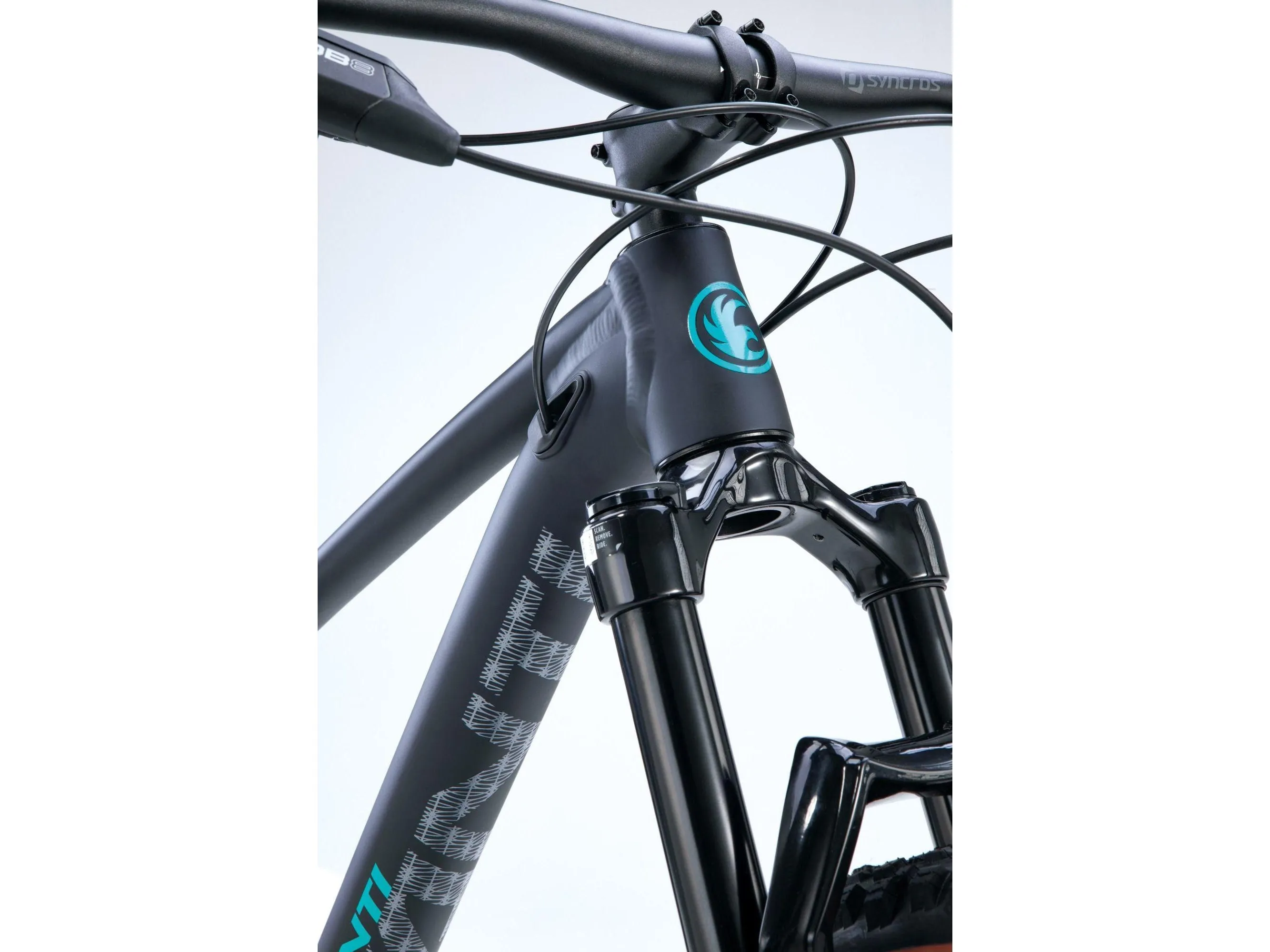

Integrated Threadless Syncros OE Pressfit/ Tapered
PEDALS
No
SADDLE
Syncros Belcarra 2.5
SEATPOST
Syncros Duncan Dropper 31.6mm with internal cable routing
STEM
Syncros Alloy 31.8, 6 deg rise
BOTTOM BRACKET
Pressfit
BRAKES
SRAM DB8 4-Piston hydraulic
BRAKES ROTOR
180mm 6-bolt rotor
CASSETTE
Microshift cassette, 11-46T, 11sp
CHAIN
KMC X11
CHAINGUIDE
Yes
CHAINRING
32T Narrow/Wide
CRANKSET
ProWheel MPX Boost, forged alloy crank, w/32T narrow/wide alloy (replaceable) chainring)
REAR DERAILLEUR

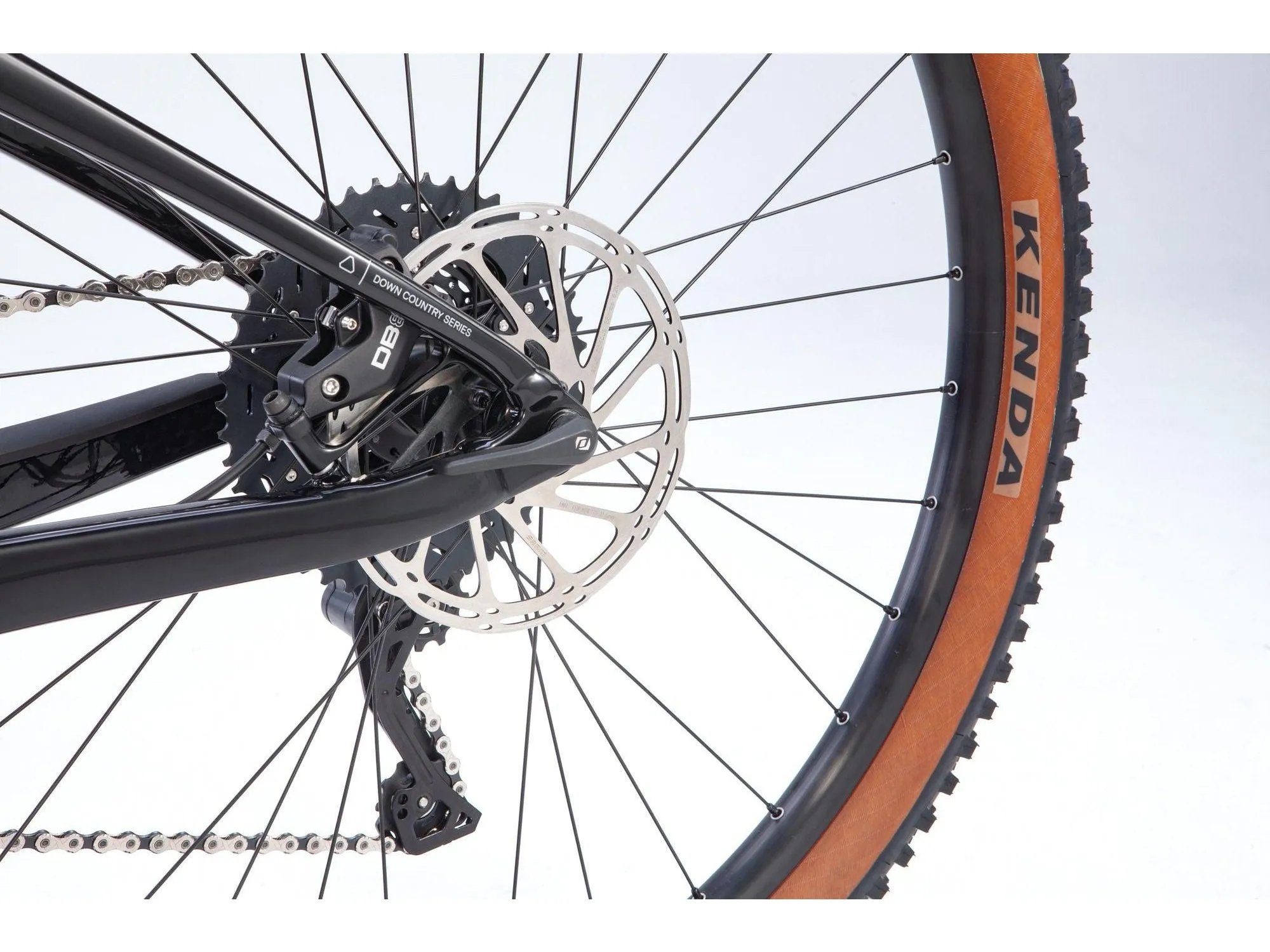

Microshift XCD 11sp with Clutch
SHIFTERS
Microshift XCD 11sp Trail trigger w/Sealed Bearing
FORK

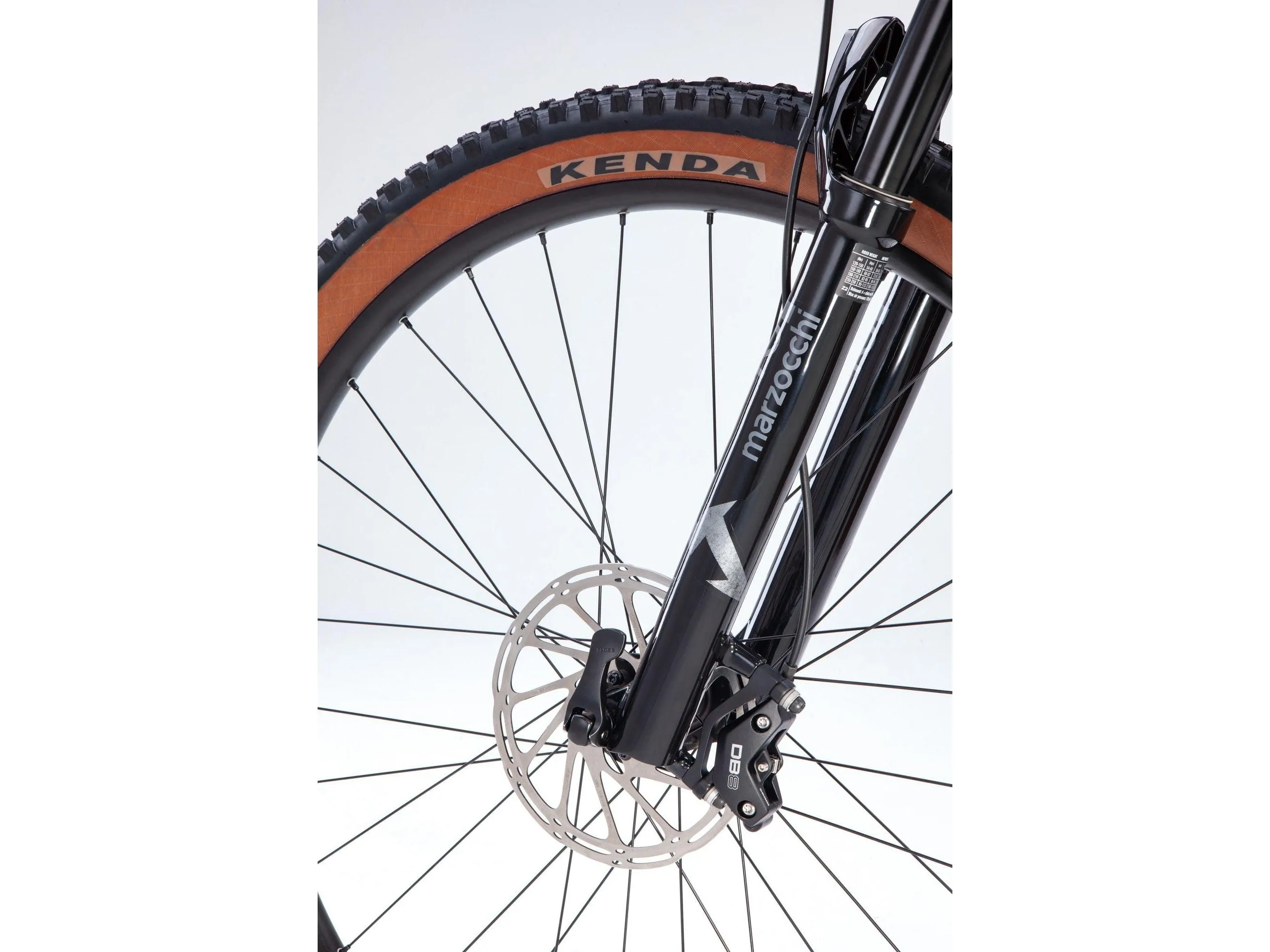

Marzocchi Z2 Bomber Air w/RAIL damper, 15x110mm axle, 130mm travel
FRAME
AL-6061 Ultralight Butted tubing, 130mm travel, cartridge bearing pivots, tapered headtube, PF92 BB, 12 x 148m
REAR SHOCK
X-Fusion 02 Pro R Air, with rebound adjust
FRONT HUB
Formula Boost Sealed Bearing 110x15 32H
REAR HUB
Formula Boost Sealed Bearing 148x12 32H
RIMS
Alex DP-27 Double-wall Alloy with eyelet 32H, Tubeless Ready
SPOKES
Stainless steel
TYRES
Kenda Regolith, 29 x 2.4 Folding, 60tpi
WHEEL SIZE
29
*Please note product specifications are subject to change.
